Wpc Fence:Installation Instruction of the DIY Fence 4'x4', Threel WPC

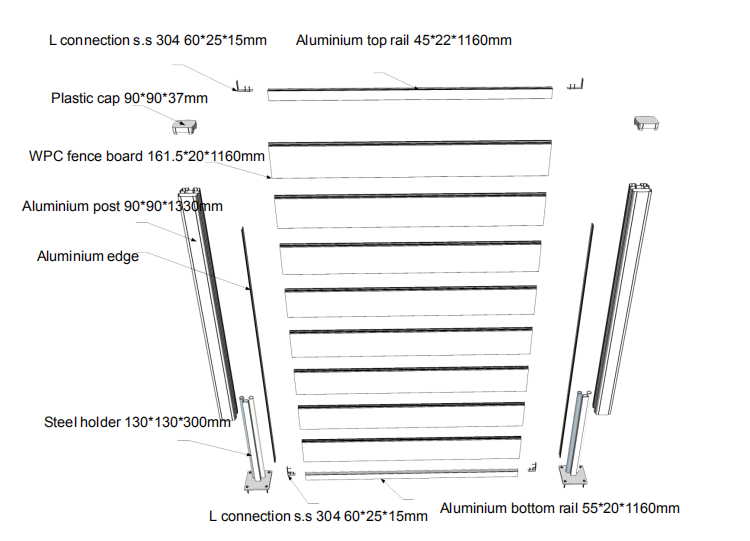

The Explosive Viewof the Fence System

Step1:Prepare wpc fence boards and some relevant accessories

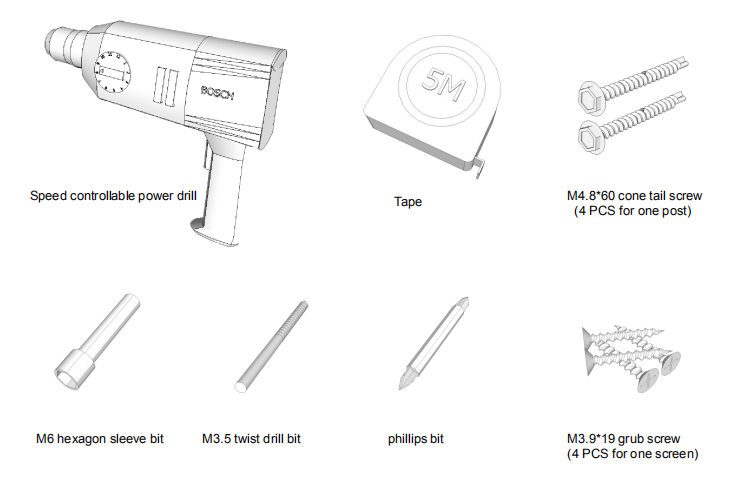

Step2:Tools & Accessories

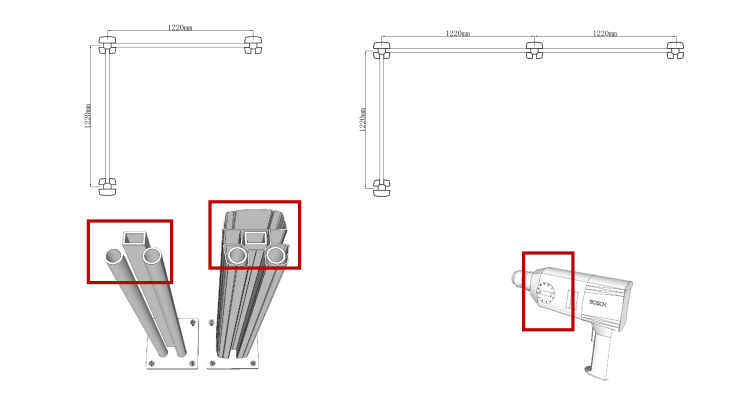

Step3:Before installation, please verify the direction of the post according to the facing of fence. Be sure that there will be one channel of the aluminium post for the nex fence installation. The direction of the steel holder should be matched with the aluminium post as referred to the photo.

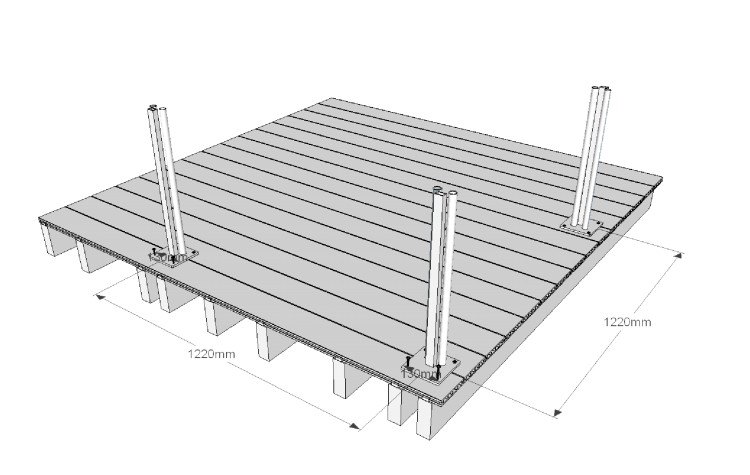

Step4:The c/c dimension of two posts is 1220mm. In order to ensure the M4.8*60 cone tail screw can be fixed into the solid wood joist, we suggest the joist should be in 150*50mm or similar size. Please make sure that there will be joist where it is needed by the cone tail screws to fix the steel holder.

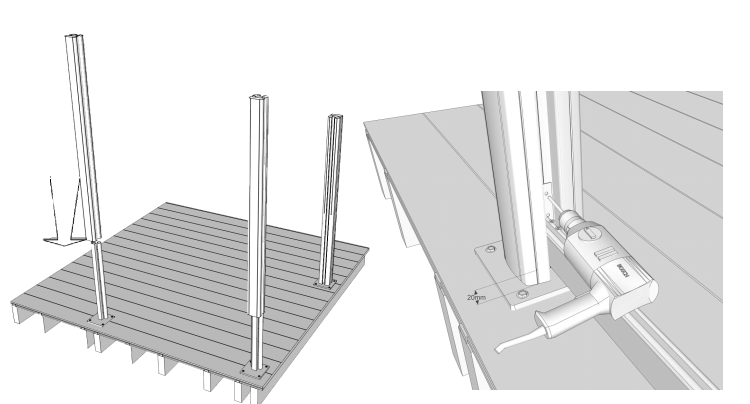

Step5:After finalizing the steel holder's direction, locate the steel holder on the decking and drill the cone tail screws into the steel holder and jost tightly.To avoid the over-drilled, please note that the rate of the power drill should not be too fast.

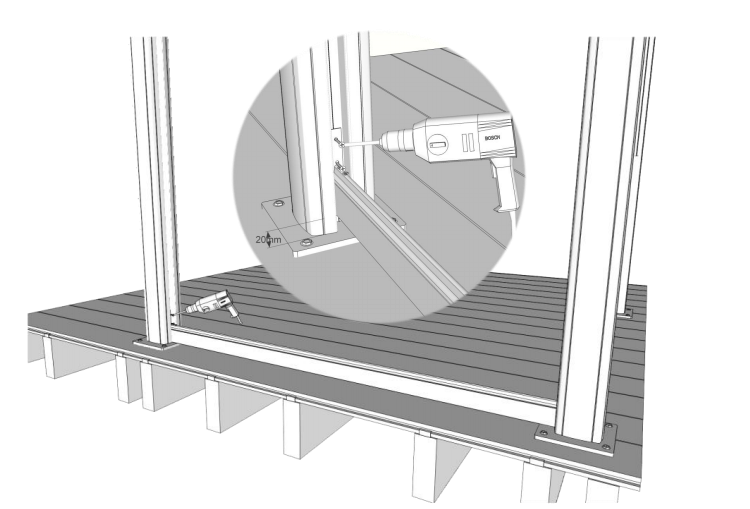

Step6:Put the aluminium post into the steel holder after it’s successfully installed.Slide the bottom rail into the post.To make sure the sufficient ventilation of the fence, keep 20mm distance between the bottom rail to the ground.Then dril holes in the post with the twist drill bit, where the bottom rail will be fixed with the post by the L connection

Step7:Fix the L connection and post by screws at the hole's place, which is pushed previously

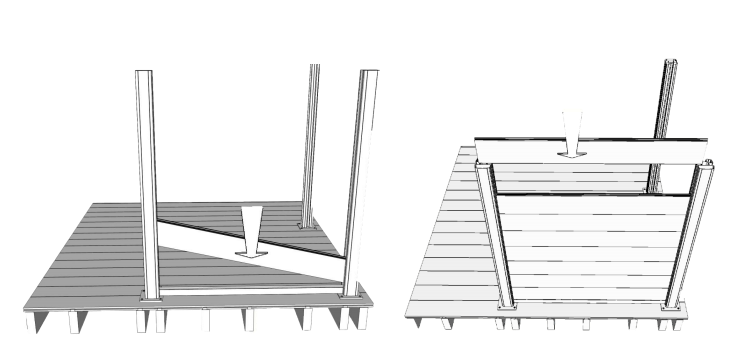

Step8:After the bottom rail’s installation, slide the WPC fence board into the post Slide the 8 pcs WPC fence board as above one by one.

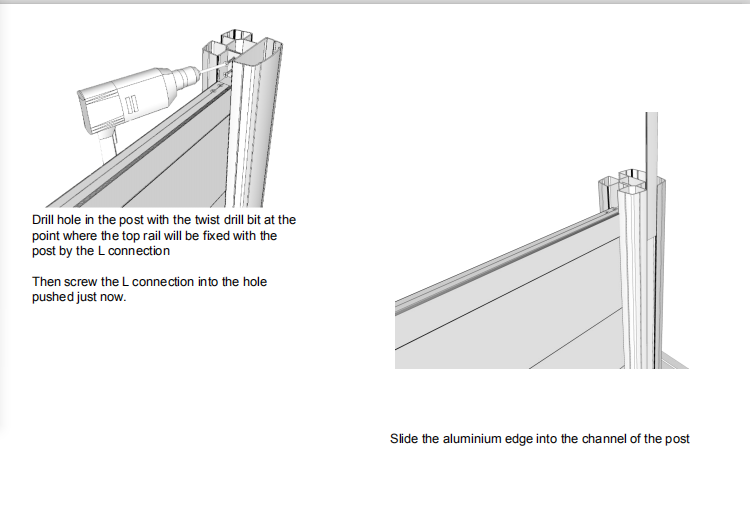

Step9:Drill hole in the post with the twist drill bit at the point where the top rail will be fixed with the post by the L connection Then screw the L connection into the hole pushed just now.Slide the aluminium edge into the channel of the post
